4A6 Splitter Carousel Style

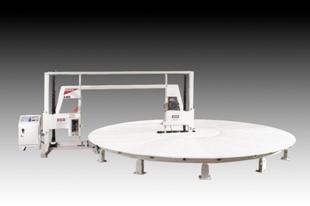

The 4A6 Carousel Slitter will cut flexible polyurethane foam with a density up to 3.5 pound/foot and an IFD rating up to 120. The unit consists of a special 96" wide Model 4A6 Stackmaster slitter head mounted over a rotating circular table.

• Type: Automatic operated moving table
• Outer diameter: 274" (22' 10")
• Inner diameter: 90”
• Table width: 92”
• Height above floor: 24”
• Table drive: variable-speed 1-200 FPM
• Cutting width:96"
• Blade height over table: 60"
• Capacity over blade: 60"
• Blade width: .75” x.035”
• Blade speed: 2077 FPM
• Data Entry/Display: 8” TFT
• Machine function: Industrial PLC
• Grinding: Automatic
