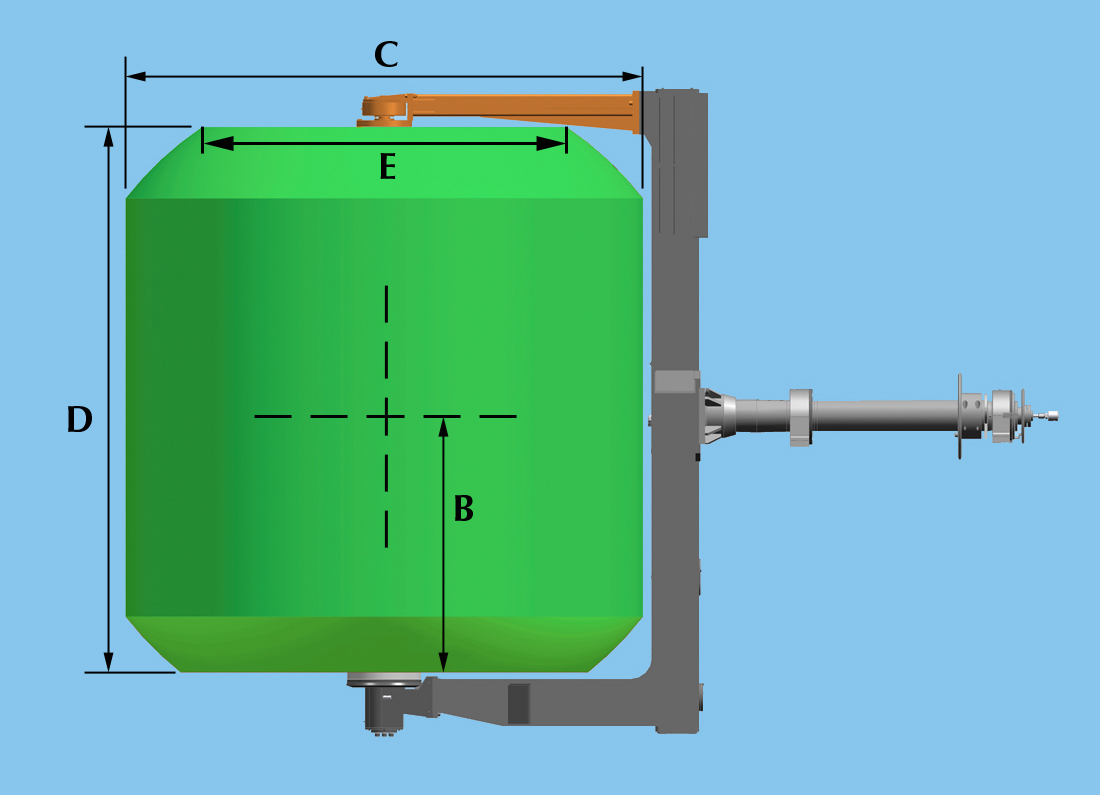

| C-Shaped Offset Arm | B | C | D | E | Weight Capacity | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Shuttle Models | Inch | mm | Inch | mm | Inch | mm | Inch | mm | lbs. | kg. |
| M-3700 | 57 | 1448 | 113 | 2870 | 117 | 2972 | 90 | 2286 | 3000 | 1365 |
| M-4600 | 71 | 1803 | 143 | 3632 | 142 | 3607 | 112 | 2845 | 4000 | 1820 |
| M-5500 | 69.5 | 1765 | 165 | 4191 | 161 | 4089 | 118.5 | 3010 | 6000 | 2730 |
