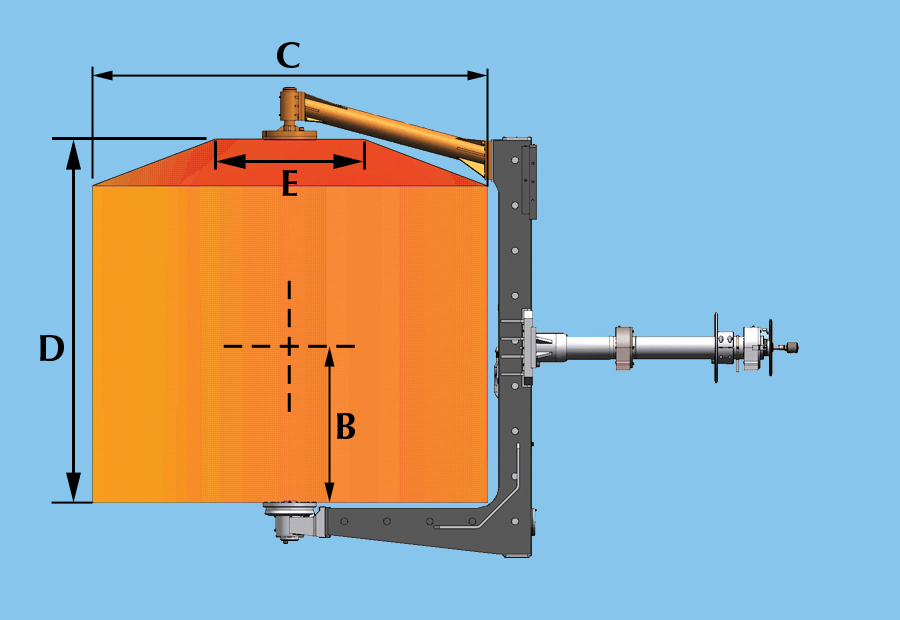

| C-Shaped Offset Arm | B | C | D | E | Weight Capacity | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Carousel Models | Inch | mm | Inch | mm | Inch | mm | Inch | mm | lbs. | kg. |
| RS-3000 | 31.5 | 800 | 101.5 | 2578 | 76 | 1930 | 44.5 | 1130 | 3000 | 1365 |
| RS-3000 | 31.5 | 800 | 101.5 | 2578 | 76 | 1930 | 44.5 | 1130 | 4000 | 1820 |
| RS-3300 | 34 | 864 | 110 | 2794 | 84 | 2134 | 47 | 1194 | 3000 | 1365 |
| RS-3300 HD | 34 | 864 | 110 | 2794 | 84 | 2134 | 47 | 1194 | 4000 | 1820 |
| RS-3700 | 43.5 | 1105 | 113 | 2870 | 99.5 | 2527 | 42.5 | 1080 | 3000 | 1365 |
| RS-3700 HD | 43.5 | 1105 | 113 | 2870 | 99.5 | 2527 | 42.5 | 1080 | 4000 | 1820 |
| RS-4000 | 43.5 | 1105 | 135 | 3429 | 108.5 | 2756 | 46.5 | 1181 | 4000 | 1820 |
| RS-4600 | 55.5 | 1410 | 143 | 3632 | 130 | 3302 | 50 | 1270 | 4000 | 1820 |
| RS-4600 HD | 55.5 | 1410 | 143 | 3632 | 130 | 3302 | 50 | 1270 | 5500 | 2500 |
| RS-5000 | 58.5 | 1486 | 147 | 3734 | 134.5 | 3416 | 50 | 1270 | 6500 | 2950 |
| RS-6000 | 76 | 1930 | 170 | 4318 | 176 | 4470 | 42 | 1067 | 6500 | 2950 |
